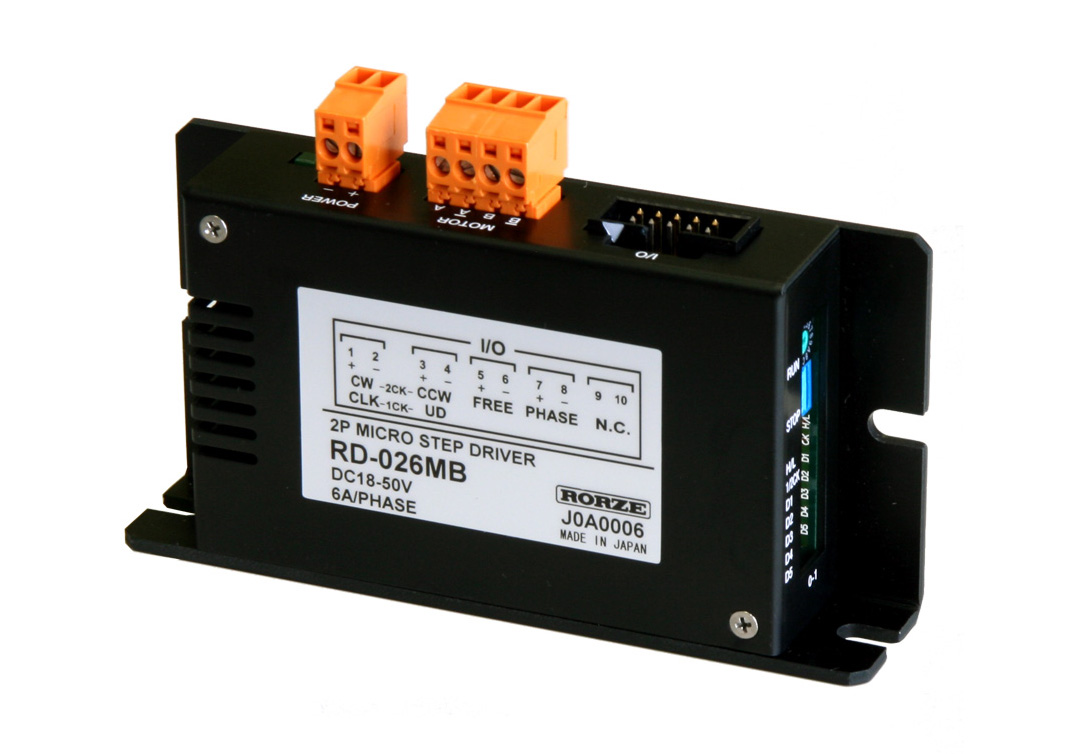

RD-026MB


Product Features

RD-026MB is a 2-phase Stepping Motor Driver that enables the micro-stepping drive. Positioning control by the pulse string signals from Generate Master RC-234 is available.

  • Max. 50 V DC supply enables high speed operation.
  • New circuit method largely reduces heat generation more than existing products in spite of being high output of max. 6A.
  • Low vibration using high resolution micro-stepping.
  • All signal input/output circuits are insulated using photo-couplers.
  • Switching between 2-clock method and one clock method is available.
  • Automatic current down (adjustable current value).

Main Specifications of the Product

Power voltage
18 DC to 50V (absolute max. rated voltage: 50V)
Power current
Approx. 1.2times (max.) the rated current value/phase of the stepping motor to be used
Motor drive current
0.2 to 6.0 A/phase
Drive method
Bipolar constant current chopper method
Micro-step resolution
1/1 to 1/400 of the motor basic stepping angle
Note: Settable micro-stepping resolution (22 selections)
 1, 2, 4, 8, 16, 32, 64
 2.5, 5, 10, 20, 40, 80, 160, 320
 6.25, 12.5, 25, 50, 100, 200, 400
Auto. current down
0 to 100% of the run current after 0.3 seconds of inactivity of clock according to STOP CURRENT setting
Response frequency
500kpps max.
Protective circuitry
Over current and low supply voltage
Operating temperature range
0 to +50℃ (Radiate heat so that the case temperature is 65℃ or less.)
Operating humidity range
85%RH or less (non-condensation)
External dimensions
22.6 (H) × 105 (W) × 65.6 (D) mm
Mass
Approx. 115g

Product External Dimensions

  • image
